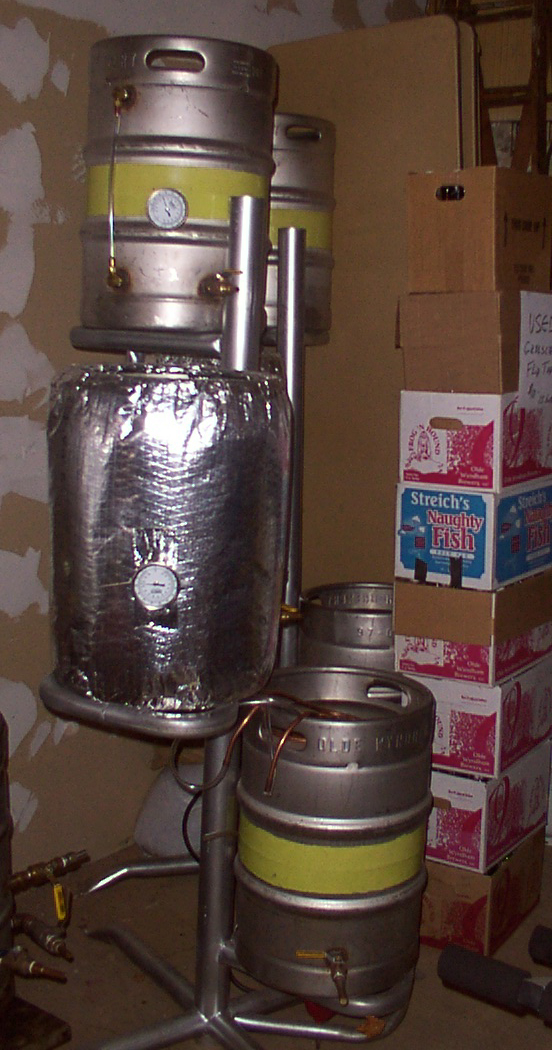

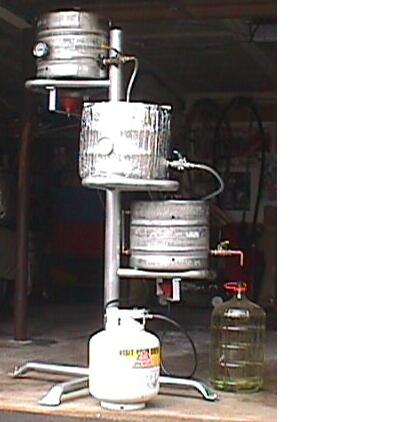

Zok’s Homebrewing & Winemaking Supplies has affordable ½ and ¼ barrel homebrewing systems for the avid homebrewer. The ¼ barrel (Beertree Jr.*) is a free standing gravity system. The ½ barrel (Beertree*) is similar, but requires a 110 Volt AC pump.

    Both Beertree* systems include a luminized (Aluminum) coated steel frame with 170,000 BTU propane burner castings attached for the hot liquor and kettle. There is an option to have a third burner added to the mash tun frame (for step mashing techniques). The vessels used are re-cycled and legal (verification included) ¼ and ½ barrel stainless steel Sanke type kegs.

   One benefit of the Beertree Jr. brewery is that it is a gravity system. After the wort is chilled, it can be simply drained into a fermentor, without the extra cost and nuisance of using a transfer pump. But for brewers, or groups of brewers who wish to make larger volumes of beer, the ½ barrel Beertree system may be used to produce up to 13.5 – 14 gallons of wort.

* The total volume of a ¼ barrel is 7.5 gallons. One can brew 6.5-7.0 gallons

* The total volume of a ½ barrel is 15.5 gallons. One can brew 13.5-14.5 gallons

• ABT Stainless (Advanced Brewing Techniques) false bottoms in kettle and mash tun.

• ABT Stainless sparge arm used in the mash tun. Insulated mash tun with insulated top ( fire retardant Aluminum coated duct wrap)

• All three vessels include ½ inch NPT brass ball valves with copper plumbing.

• 4" diameter dial, 5-inch probe, stainless bimetal thermometers for hot liquor& mash tun.

• 170,000 BTU burners for both hot liquor and kettle. (mash tun burner optional)

• Propane source regulator (standard size) with dual outlets (three outlets optional)

• All hoses, tubing and hardware.

• Hot liquor and kettle include attached sight tubes.
• Optional Moving Brews or similar food grade 110 V pump.

*Not included; propane tank.

Complete Beertree Jr. 1/4 barrel System……… $889.00
Complete Beertree ½ barrel System…………  $989.00

For a fee, Zok’s will deliver (locally) and demonstrate the system

Zok’s Homebrewing & Winemaking Supplies
18 North Street, Willimantic, Conn. 06226
(860) 456 7704

www.homemadebrew.net

zoks.homebrewing@snet.net
