Zok’s Homebrewing & Winemaking Supplies has affordable ½ barrel homebrewing systems for the avid homebrewer. A 110 Volt pump is optional.

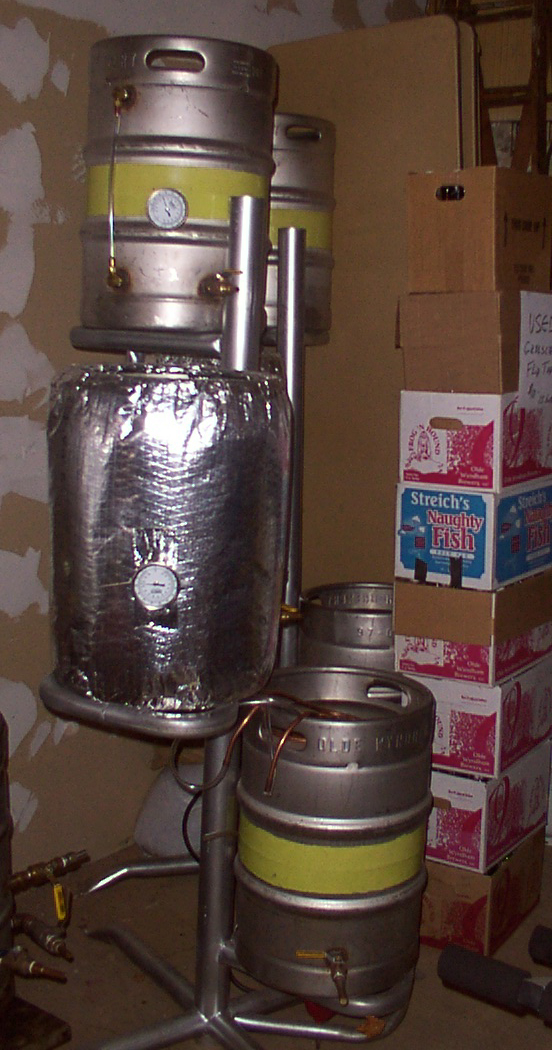

    The brew systems include a luminized (Aluminum) coated steel frame with 170,000 BTU propane burner castings attached for the hot liquor and kettle. There is an option to have a third burner added to the mash tun frame (for step mashing techniques). The vessels used are re-cycled and legal (verification included) ½ barrel stainless steel Sanke type kegs.

* The total volume of a ½ barrel is 15.5 gallons. One can brew 13.5-14.5 gallons

• ABT Stainless (Advanced Brewing Techniques) false bottoms in kettle and mash tun.

• ABT Stainless sparge arm used in the mash tun. Insulated mash tun with insulated top ( fire retardant Aluminum coated duct wrap)

• All three vessels include ½ inch NPT brass ball valves with copper plumbing.

• 4" diameter dial, 5-inch probe, stainless bimetal thermometers for hot liquor tank & mash tun.

• 140,000 BTU burners for both hot liquor tank and kettle. (mash tun burner optional)

• Propane source regulator (standard size) with dual outlets (three outlet rig optional)

• All hoses, tubing and hardware.

  *  Optional Moving Brews or similar food grade 110 V pump.

*Not included; propane tank.

Complete Beertree ½ barrel System…………  $1250.00

For a fee, Zok’s will deliver (locally) and demonstrate the system

Zok’s Homebrewing & Winemaking Supplies
18 North Street, Willimantic, Conn. 06226
(860) 456 7704

www.homemadebrew.net
